ECO Totem

Type 2
Type 2 socket
Type 1
GB/T
NACS

A reliable solution for commercial and semi-private use. Built for stable operation, scalability and integration into your charging infrastructure.

Power output: up to 22 kW/port

Charging type: AC

Mounting: Floor-standing

Order a station

Where to apply?

Fleets
Workplaces
Parking lots
Residential buildings
Municipalities
Home charging

Key benefits

Industrial-grade reliability for everyday use

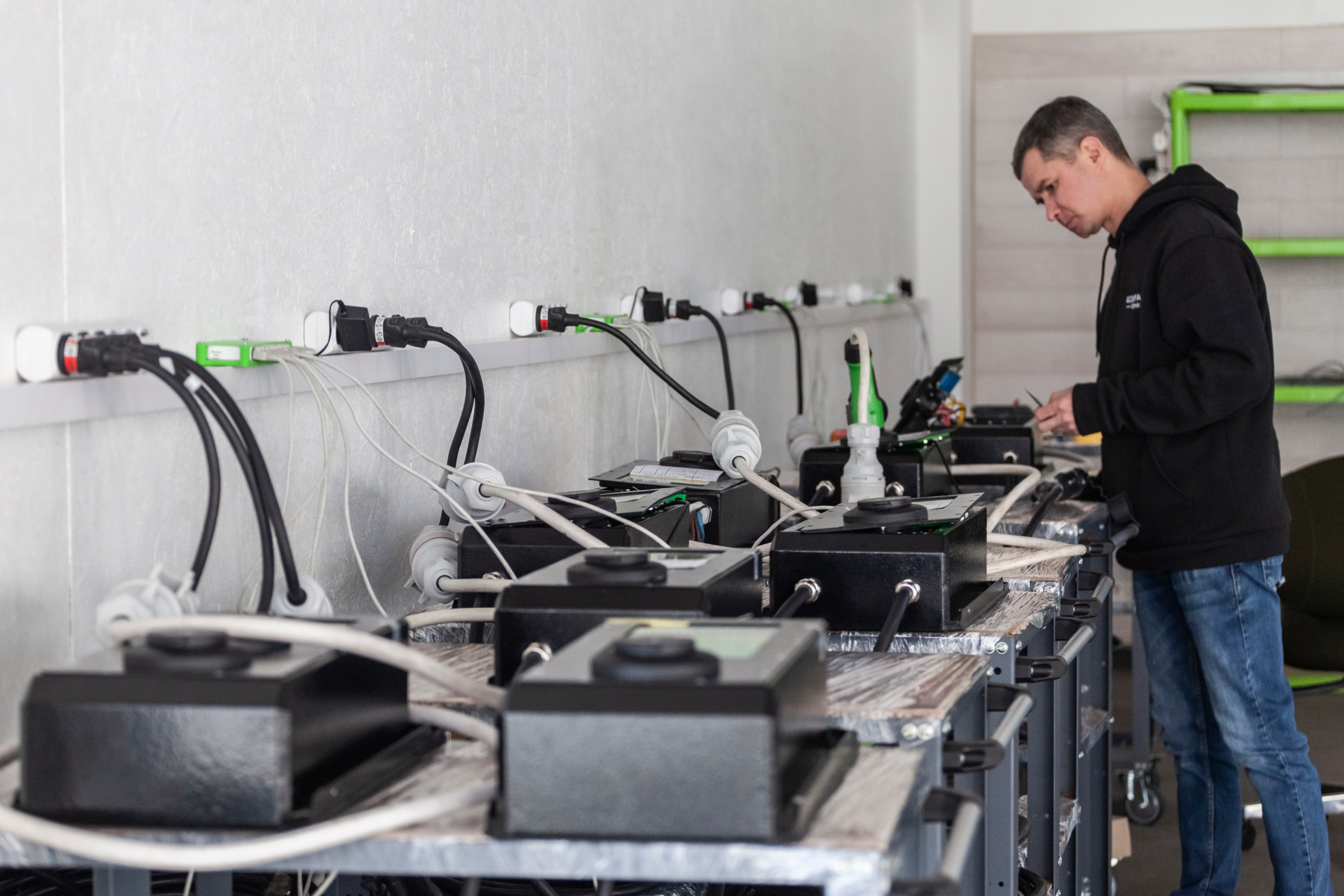

Factory testing and functional safety control.
Commercial energy metering

An optional MID-approved energy meter suitable for commercial billing, reporting and settlement.
Remote monitoring and management

Supported via OCPP 1.6 JSON over TLS 1.2, with integration into the ECOFACTOR network and third-party back-office systems.
Protection rate

IP54 and IK10 rated for real-world operation.

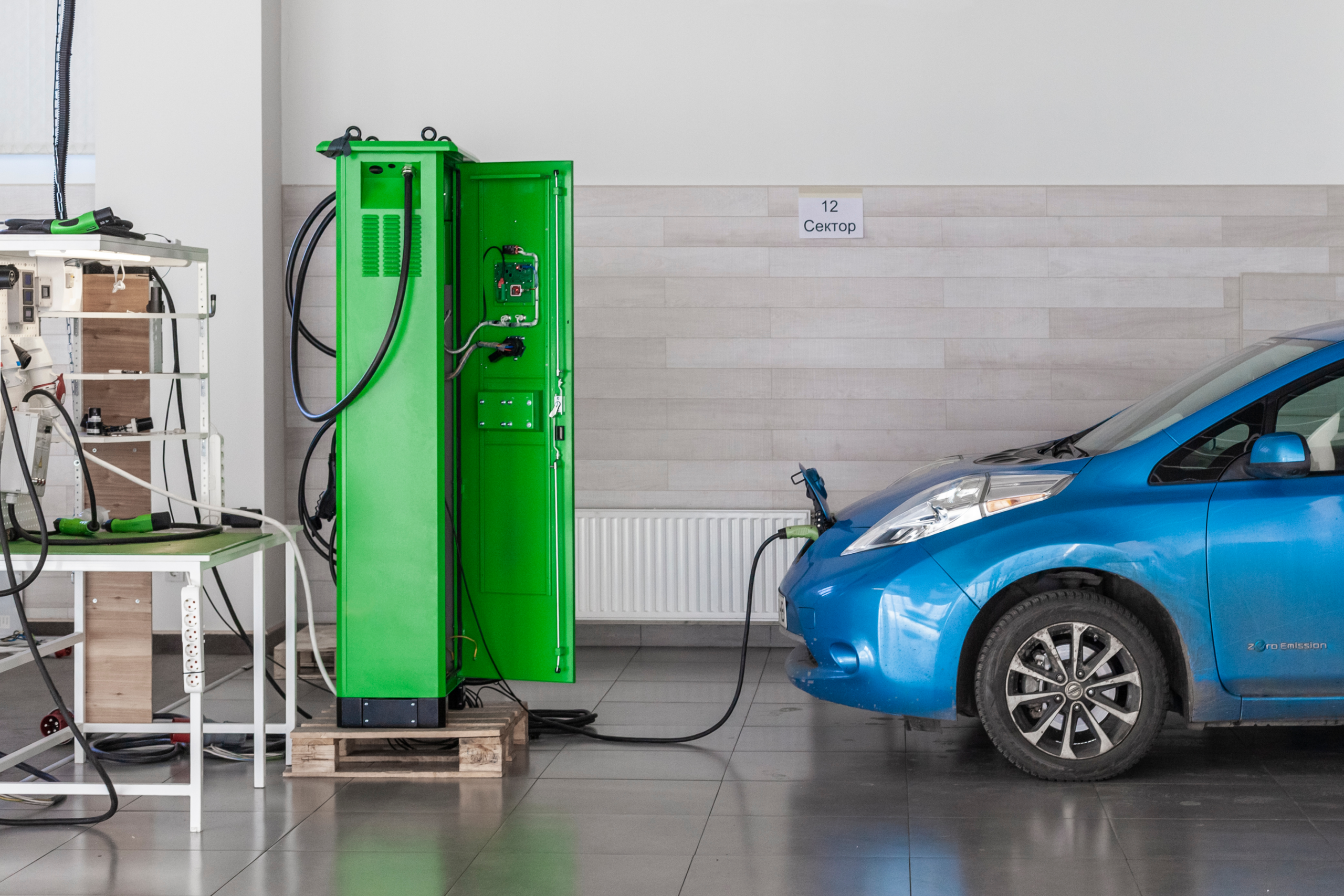

Design and build

The station has an understated, engineering-led design adapted for the urban environment. The enclosure is designed with long-term operation and ease of servicing in mind.

*Visualisations are illustrative and vary depending on station configuration.

Order a station

Technical overview

Key specifications:

Rated power output:: up to 22 kW per connector
Supply voltage:: 400 V, 3-phase
Number of connectors:: 2–3
Mounting type:: Floor-standing
Dimensions (H×W×D):: 1874 × 402 × 150 mm
Weight:: 40 kg

Connectivity and control:

Communication: Ethernet / LTE / Wi-Fi
Protocol: OCPP support
Management: Remote monitoring and control

Safety and reliability

Temperature monitoring
Compliance with international standards
Built for heavy-duty use
Overvoltage and overload protection

Infrastructure integration

The station integrates seamlessly into existing charging-network management systems and works with billing platforms and mobile apps.

RFID

OCPP 1.6/2.0

Billing systems

Mobile App

Remote monitoring

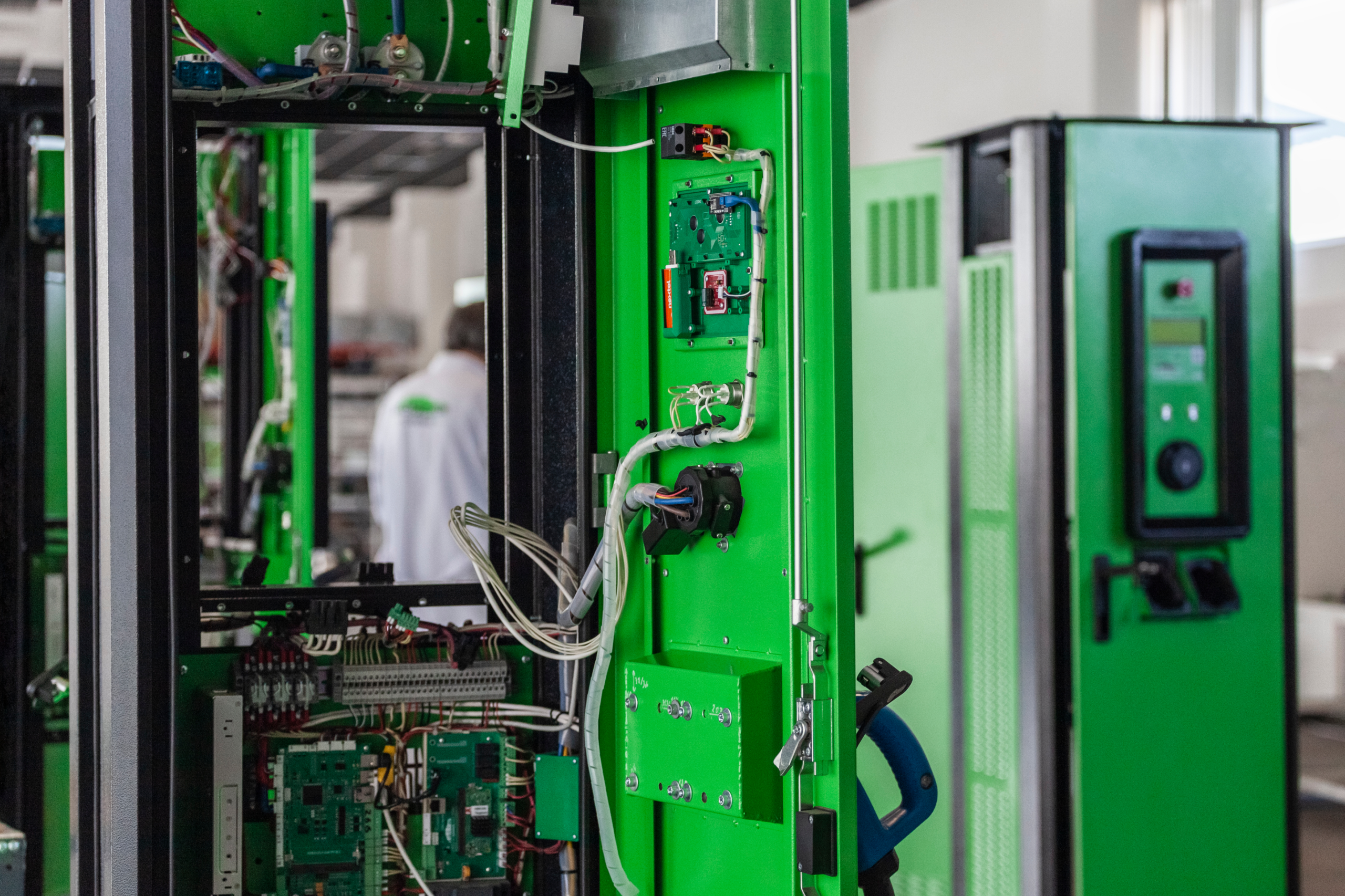

Manufacturing and innovation

Full development cycle

Our devices are fully developed and manufactured in-house. ECOFACTOR controls the entire process — from design through to final testing and servicing.
