Mobile-7 EFС AC-32MM

13,000,00

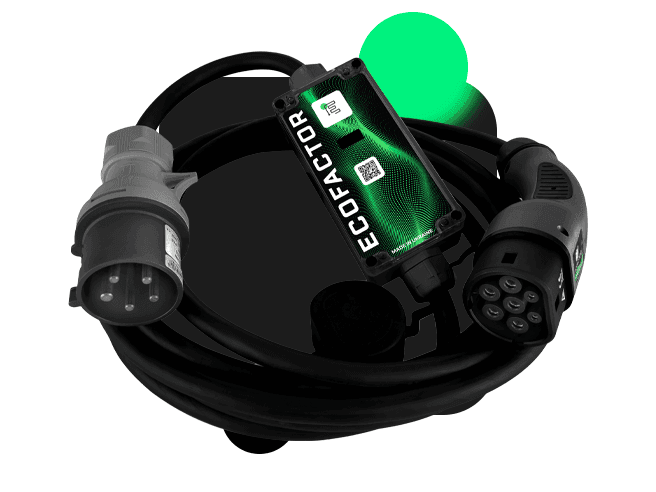

Mobile charger EFС AC-32MM for battery-powered electric vehicles.   Дallows charging an electric vehicle from a household network.

Cable length - 5 m

  • Connector typeType-2 Mennekers
  • Power plugIndustrial 5PIN
  • Power7 kW
  • Amperage6-32 A
Add to basket

The EFС AC-32MM mobile charger can be used both indoors and outdoors.

Device. dynamically adapts to the power of the network. If the voltage drops, the controller will automatically change the settings to the new parameters and charge the electric vehicle at a lower power. And when the voltage stabilises - will return the default value.

The safety of your electric vehicle is guaranteed by the device's protection against power surges, grounding control, dust and and moisture resistance and high quality materials. A timer for scheduling charging times is also useful. With it, you can charge your car during the hours of a more favourable tariff or limit the duration or volume of the charge.



  • Weight 4 kg
  • Dimensions 340 × 340 × 120 cm
  • Charging power

    7 kW

  • Power plug

    Industrial (IEC 60309) 5PIN

  • Vehicle connector

    Type-2 Mennekes

  • Current control range

    6-32A

  • OLED display

    0,96"

  • Timer

    the ability to set the time to start the charging cycle, the duration of charging and the number of kW that will be used to charge the electric vehicle

  • Connecting to the network

    220 В

  • Frequency in the network

    50-60 Hz

  • Power consumption in charging standby mode when the vehicle is connected

    5 W

  • Power consumption in charge mode

    up to 3680 W

  • Monitoring the continuity of the protected earth (PE) circuit

    Time between detection of an open circuit and charger disconnection: 0.1 с

  • Protection against over- and under-voltage of the input phase voltage, range

    165-255 В

  • Current loss control

    type A > 30 mA

  • Protection class of the plug

    IP-44 (protection against particles > 1 mm and droplets)

  • Protection class of the charger

    IP-65 (protection against dust and moisture)

  • Protection class of the power cable

    IP-65 (protection against dust and moisture)

  • Protection class of the vehicle connection connector

    IP-54 (protection against dust and dripping)

  • Electrical safety

    EN61851-1:2011, EN61439-1:2011, IEC/TS61439-7:2014, EN60950-1:2006, EN60947-3:2009, EN60990:2016

  • Electromagnetic compatibility

    EN61000-6-1:2007, EN61000-6-3:2007

  • EFFICIENCY

    99 %

  • Protection against overheating

    > 70 °C

  • Operating temperature

    - 25 ... +45 °C

  • Storage temperature

    - 35 ... +60 °C

  • Maximum ambient humidity at 25 °C:

    95 %

  • Maximum operating height above sea level:

    1000 м

  • Cross-section of the cable

    3*2.5+2*0.75 mm²

  • Housing material

    plastic

  • Control unit WxDxH

    220x80x60 mm

  • The scope of delivery

    charging station (1 pc.), transport and storage bag (1 pc.), user manual (1 pc.), packaging (1 pc.)

  • Warranty

    24 months. Warranty and post-warranty service is carried out by ECOFACTOR's own service centre

  • Country of manufacture

    Ukraine

  • Certification

    European CE
