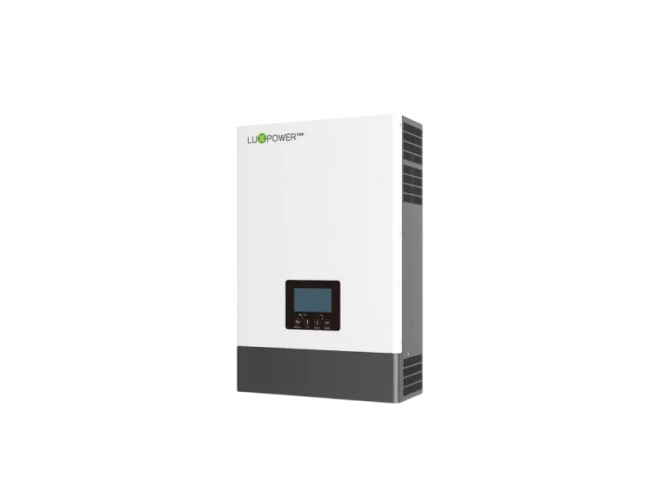

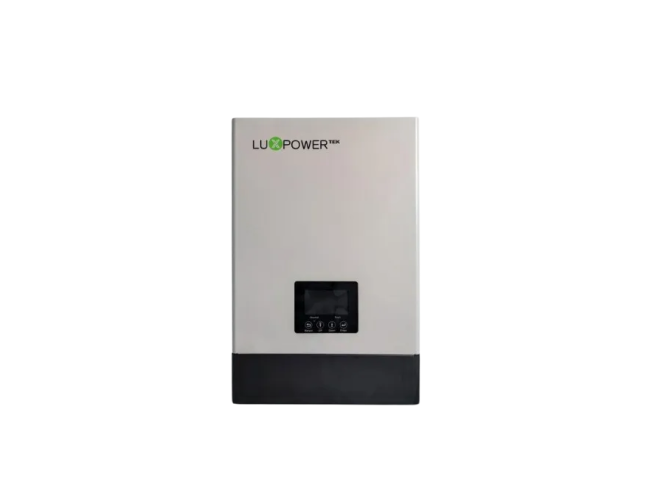

Hybrid inverter LuxPower SNA6000 WPV (6 kW, 48 V, 1 phase)

20,445

The LuxPower SNA6000 WPV 6 kW is a single-phase hybrid inverter for home and small commercial solar power plants with 48 V low-voltage batteries. It is equipped with two MPPT controllers, supports battery-free operation, surplus sales to the grid, backup power, generator connection and parallel connection of up to 10 inverters.

  • Connector typeGB/T
  • Power plugIndustrial 3PIN
  • Power7 kW
  • Amperage6-32 A
Add to basket

The LuxPower SNA6000 WPV is a versatile hybrid inverter that combines the capabilities of a grid-tied, stand-alone and backup system in one package. The device works with solar panels, the grid and a 48 V battery, automatically selecting the energy source depending on the settings: you can give priority to the sun, battery or grid, as well as use a mixed mode with your own consumption and selling the surplus to the grid.

Two independent MPPT trackers with a voltage range of 100-480 V (working MPPT 120-385 V) allow you to connect up to 6.4 kW of solar panels and spread them over different roof planes, for example, east/west or south/west. This results in more even generation throughout the day and reduces shading losses. Each tracker has a current of up to 17 A (maximum 25+25 A), which allows it to work with modern high-power panels.

The inverter is designed to work with a wide range of batteries: AGM, GEL, LiFePO₄ and Li-ion in the range of 40-60 V, and supports communication with BMS via CAN or RS485. The maximum charging and discharging current is up to 140 A, so the device works well with high-capacity battery packs. It supports charging from the mains (up to 60 A), as well as a separate input for connecting a generator with built-in automatic switching (ATS function).

With support for up to 10 inverters in parallel, LuxPower SNA6000 WPV allows you to scale your system up to 30 kW in single-phase or three-phase configuration. Built-in Wi-Fi and cloud service enable remote monitoring, configuration changes and software updates. IP22 protection class, efficiency up to 93 % and compact dimensions make the inverter convenient for indoor installation.

  • Weight 14,5 kg
  • Dimensions 50,5 × 33,0 × 13,5 cm
  • Manufacturer / model

    LuxPower SNA6000 WPV (ECO SNA6000 WPV)

  • Inverter type

    Hybrid single-phase on/off-grid, with UPS and surplus sales to the grid

  • Rated power / peak

    6 kW nominal, up to 8 kW (10 s) and 12 kW (2 s) peak power

  • Output / network

    1 phase, 220 V (range 170-280 V), 50/60 Hz (software)

  • Solar input (PV)

    Max. field power 6.4 kW, voltage range 100-480 V, operating MPPT 120-385 V, 2 MPPT (1+1 input)

  • Battery

    Rated 48 V (range 40-60 V), types AGM/GEL/LiFePO₄/Li-ion, BMS support via CAN/RS485

  • Charging/discharging current

    Up to 140 A charge/discharge; mains charge up to 60 A; PV charge up to 100+ A (depending on configuration)
